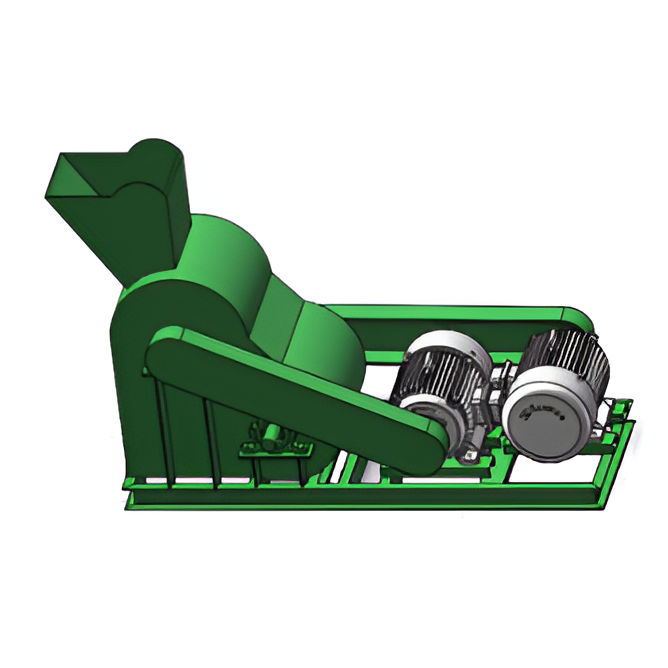

Two-Stage Crusher (Screenless)

The High-Efficiency, Clog-Resistant Solution for Complex Material Size Reduction

The Two-Stage Crusher is an innovative, screenless crushing system that integrates two distinct size reduction mechanisms within a single, compact housing. Designed to handle challenging materials that are prone to clogging or require multi-stage processing, it efficiently breaks down lumpy, fibrous, or sticky substances—such as organic fertilizers and compound NPK blends—in a continuous, single-pass operation, eliminating the need for intermediate screening and conveyors.

Key Features

  • Integrated Two-Stage Design

    Combines two different crushing mechanisms (typically a primary hammering or shredding stage followed by a secondary fine-breaking stage) in sequence within one machine.

  • Screenless Operation

    Eliminates the use of discharge grates or screens, which are common clogging points. Material size is controlled by the design of the crushing chambers and the speed of the rotors, ensuring smooth operation with moist or fibrous feed.

  • Continuous, Single-Pass Processing

    Material is progressively reduced in size as it moves through the two stages, allowing for high throughput without the need for external recycling loops.

  • Heavy-Duty, Tolerant Design

    Built to withstand foreign materials and variable feed conditions with lower risk of jamming compared to single-stage, screen-dependent crushers.

  • Compact Footprint

    Combining two stages into one unit saves significant floor space compared to installing two separate crushers.

Advantages

  • Superior Clog Resistance

    The absence of screens makes it ideal for crushing moist, sticky, or fibrous materials (like organic compost or certain compound fertilizers) that would rapidly blind a traditional hammer mill.

  • High Efficiency with Complex Materials

    The two-stage action is specifically effective on materials with heterogeneous composition, ensuring both coarse and fine components are adequately reduced.

  • Lower Maintenance Downtime

    Reduced risk of blockages and fewer wear-prone components (like screens) lead to more stable operation and less frequent interventions.

  • Excellent Particle Size Control

    Despite having no screen, the cascading two-stage action can produce a well-graded, consistent product suitable for granulation feed.

  • Energy Efficient Design

    Achieving size reduction in one integrated pass can be more energy-efficient than running two separate machines.

Applicable Raw Materials

  • Organic Fertilizers

    Lumpy compost, manure cakes, biogas residue, and other fibrous organic inputs

  • Compound Fertilizer (NPK) Lumps

    Oversized or hardened granules, production scrap, and off-spec material for recycling

  • Materials with High Moisture Content

    Slightly damp salts, filter cakes, and recycled materials that are not suitable for dry crushing.

  • Mixed Waste Streams

    Materials containing both hard and soft components

Basic Structure & Components

Two-Stage Crusher (Screenless)
Unified Crusher Housing

A single, robust enclosure that contains both crushing stages.

Primary Stage Rotor & Tools

The first rotor, often equipped with heavy hammers or teeth, designed for coarse shredding and initial break-down.

Secondary Stage Rotor & Tools

The second rotor, typically featuring finer teeth, hammers, or a different configuration, for final size reduction.

Common Drive System

One or two motors powering the rotors, often through a gearbox or belt system to achieve optimal speeds for each stage.

Central Feed Hopper

Directs material into the primary crushing chamber.

Internal Flow Baffles

Guides material from the first stage to the second stage efficiently.

Discharge Outlet

Positioned at the end of the second stage for final product exit.

Access Doors

For maintenance and inspection of both stages.

Technical Data

ParameterModel TSC-600Model TSC-800Model TSC-1000
Rotor Diameter (Primary/Secondary, mm)600 / 500800 / 6501000 / 800
Feed Opening (mm)400 x 400500 x 500600 x 550
Max Feed Size (mm)200250300
Final Product Size (mm, typical)< 5 – 10< 5 – 10< 5 – 10
Capacity (t/h, for organic fertilizer)3-88-1515 – 25
Total Power (kW)30 – 4555 – 7590 – 132
Weight (kg, approx.)~3500~6000~9500
Note: Capacity and product size are highly dependent on material characteristics (especially moisture and fiber content). All specifications are for reference and subject to engineering customization.

Key Differentiators vs. Other Crushers

The fundamental advantage is clog resistance and suitability for complex materials. A traditional hammer mill with a discharge grate will blind with sticky/organic feed, whereas the Two-Stage Screenless Crusher handles it continuously. It is a purpose-built solution for problem materials rather than a general-purpose crusher.

While both handle moist materials, the Two-Stage Crusher employs a different mechanical principle (two-stage impact/tearing) and is often used for larger lump sizes and higher capacities. The Semi-Wet Crusher is specifically designed with unique shafts/blades to cut and extrude pasty materials.

Serves a completely different stage in the process. A Jaw Crusher is for primary, coarse crushing of very hard rock. The Two-Stage Crusher is a secondary/tertiary crusher for softer, but more problematic, agglomerated or organic materials.

Both can handle organic materials. The Two-Stage Crusher generally offers higher capacity and more positive feeding for lumpy materials, while the Chain Crusher excels at lightweight, brittle, and dry fibrous materials with potentially lower energy consumption.

It is the specialized, high-efficiency choice for fertilizer producers dealing with significant volumes of organic materials, sticky compound fertilizer recycling, or any feedstock where clogging is a primary concern with conventional crushing equipment.
