High Tower Granulation Nozzle

The Precision Heart of Urea and Ammonium Nitrate Prill Formation

The High Tower Granulation Nozzle is the critical component at the core of the tower granulation process, a technology renowned for producing superior-quality, spherical prills of urea and ammonium nitrate. This precision-engineered nozzle atomizes the molten fertilizer solution into a uniform rain of fine droplets within a high tower. As these droplets fall counter-current to a stream of cooling air, they solidify into perfectly round, dust-free, and highly soluble granules. We supply high-performance nozzles designed for optimal spray pattern, capacity, and longevity.

High Tower Granulation Nozzle

Key Features

  • Precision Atomization Design

    Engineered to create a uniform, full-cone spray pattern of droplets with a narrow size distribution, ensuring consistent prill size and quality.

  • Abrasion & Corrosion Resistant Materials

    Constructed from specialized stainless steels or alloys to withstand the corrosive nature of hot, concentrated fertilizer melts and the abrasive wear of the process.

  • Optimized Orifice Geometry

    The internal flow path and exit orifice are meticulously designed to minimize pressure drop, prevent clogging, and achieve efficient breakup of the molten stream.

  • Modular & Serviceable Design

    Often configured in multi-nozzle manifolds for high capacity. Designed for easy installation, inspection, and replacement to minimize plant downtime.

  • Customizable for Capacity & Product

    Nozzle specifications (orifice size, spray angle) can be tailored to match specific production line capacities and desired prill size ranges.

Advantages

  • Produces Premium Prills

    Enables the production of uniformly sized, spherical granules with excellent mechanical strength, low dust, and superior storage and handling properties.

  • High Process Efficiency

    Ensures complete solidification of droplets within the tower, maximizing yield and minimizing the formation of undersize or oversize particles.

  • Reliable Long-Term Operation

    Robust construction and cleanable design ensure consistent performance over long production campaigns, reducing maintenance frequency.

  • Core to a Proven Process

    As part of the tower granulation system, it leverages a simple, energy-efficient (using gravity and air cooling) and large-scale production method.

Applicable Raw Materials

  • Primary Application

    Urea Prilling and Ammonium Nitrate Prilling.

  • Process Stage

    The molten fertilizer solution preparation and pumping system upstream; the prilling tower and cooling system downstream.

Basic Integration & Components

High Tower Granulation Nozzle

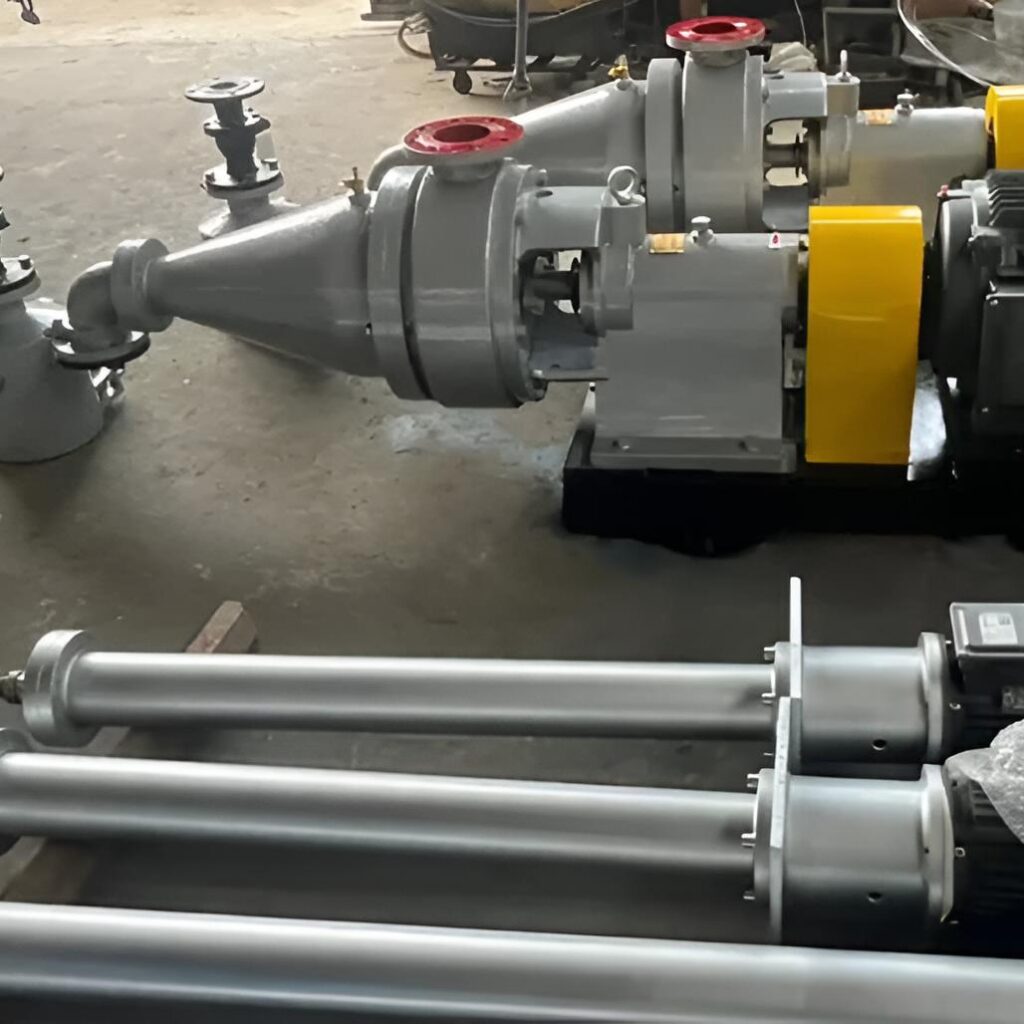

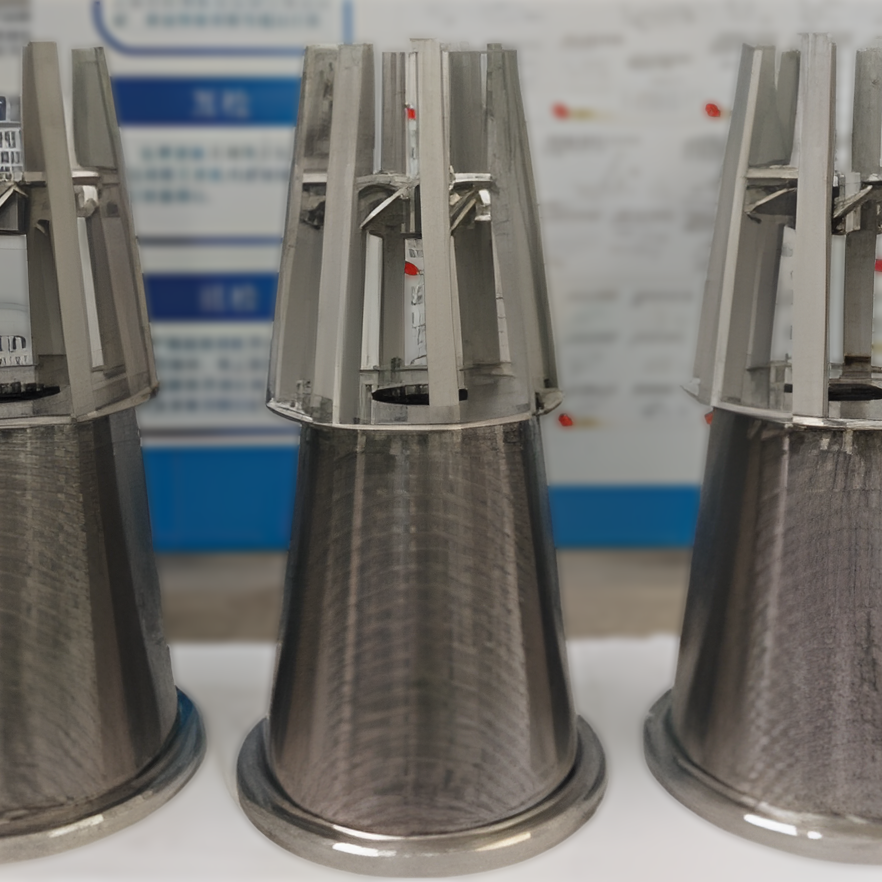

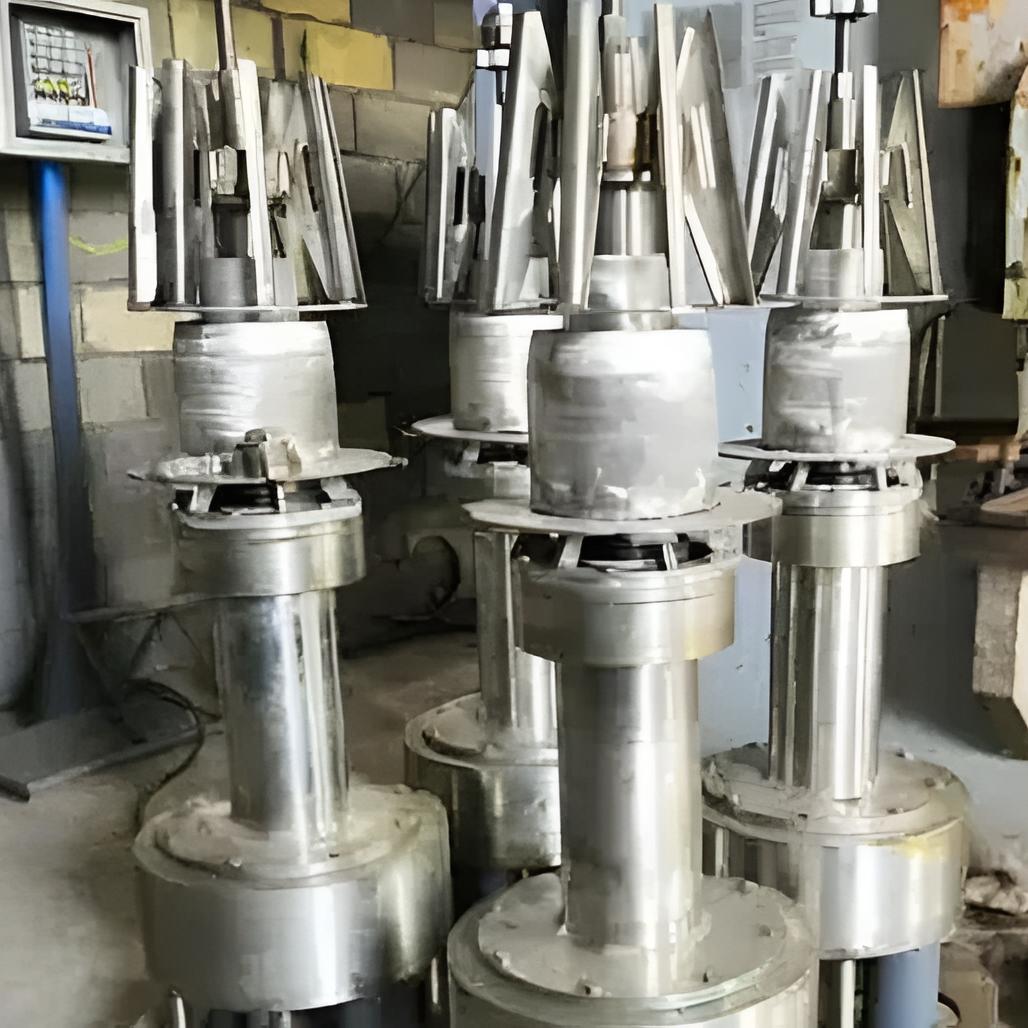

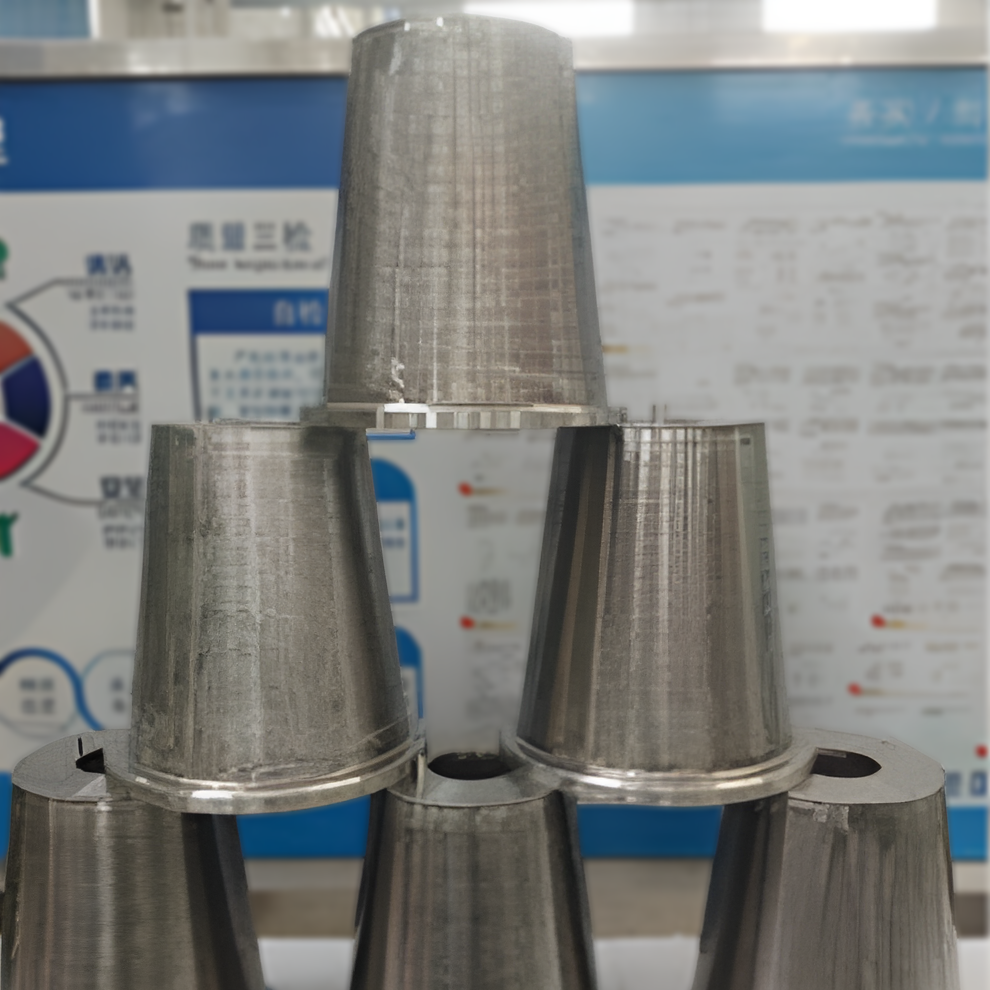

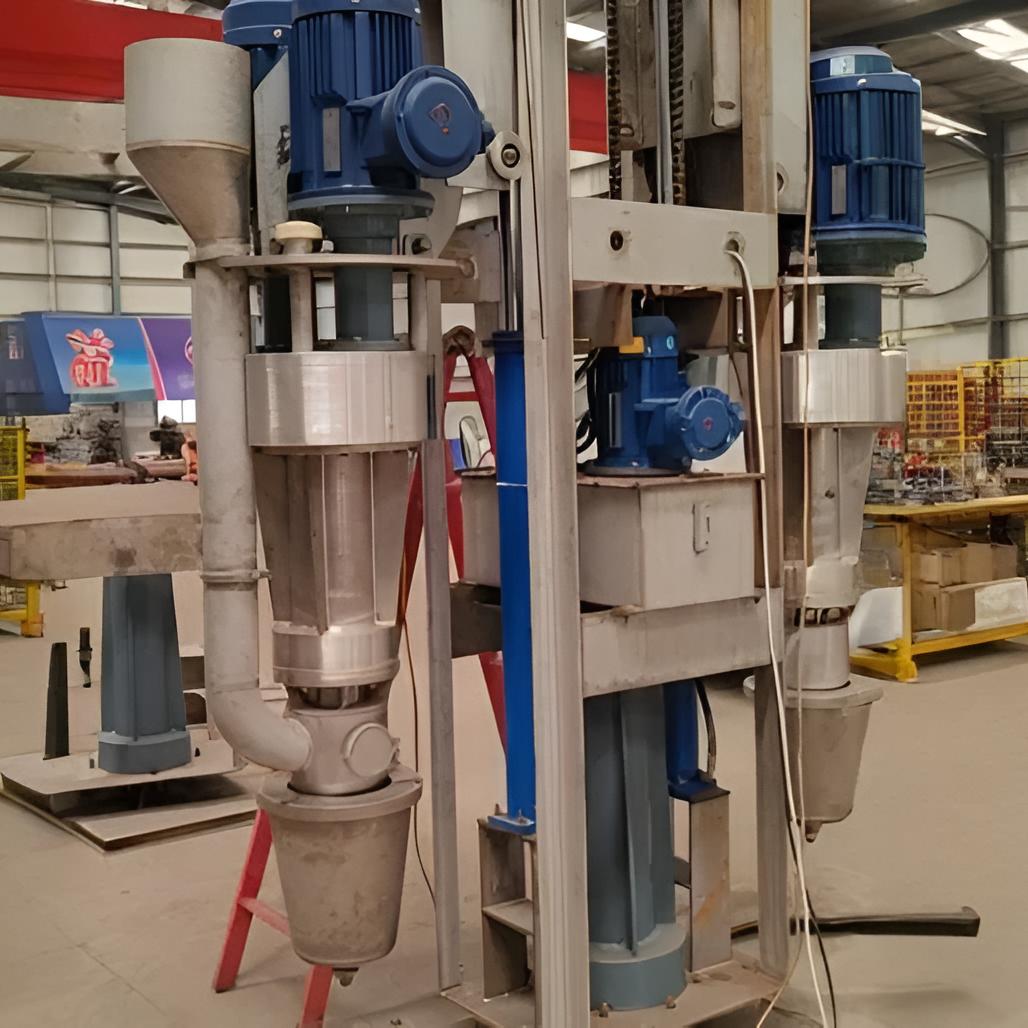

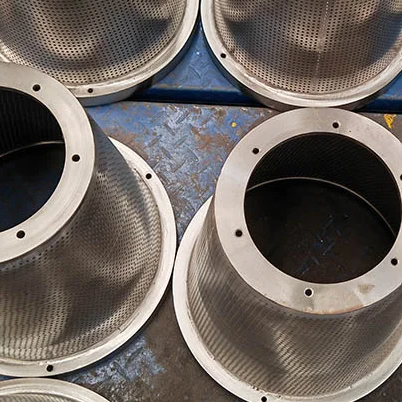

Nozzle Body & Orifice

The main wear part responsible for droplet formation.

Nozzle Manifold / Header

A distribution pipe assembly that supplies molten fertilizer to one or multiple nozzles, ensuring equal pressure and flow.

Strainer / Filter Unit

An essential upstream component to protect the nozzle orifice from being blocked by impurities in the melt.

Thermal Jacketing (Optional)

For nozzles requiring maintained temperature to prevent solidification at the tip.

Mounting & Alignment Flange

Ensures the nozzle is securely and correctly positioned within the tower head for optimal spray pattern.

Technical Data

Parameter

Specification Range

Material

316L Stainless Steel, Special Alloys

Orifice Diameter (mm)

1.5 – 4.0 (Custom)

Spray Angle (°)

60 – 90

Operating Temperature (°C)

140 – 180 (Urea)

Designed Melt Pressure

Customer process specific

Capacity per Nozzle (t/day, approximate)

50 – 300 (Depends on full system design)

Note: All specifications are part of a complete tower granulation engineering design.

Key Differentiators vs. Other Granulation Methods

Produces perfect spheres (prills) through solidification of droplets, whereas rotary drum creates granules through agglomeration and layering of solids. Prills are typically more uniform and have different dissolution characteristics.

Both produce granules from a liquid feed, but tower prilling is a falling-drop cooling process primarily for specific chemicals (urea, AN), while fluidized beds are more versatile for various materials using a spray-on-particle growth mechanism in a hot air stream.

It is not a standalone machine but the key precision component defining the quality and capacity of a High Tower Granulation Plant, which is a complete process line including melting, pumping, prilling, cooling, and screening sections.

The Tower Prilling System is the core of a complete High-Tower Granulation Production Line.

Visit our Production Lines section to see how this system integrates with melting, cooling, screening, and packaging for a turnkey solution.
