Centrifugal Spray Dryer

The High-Speed Solution for Transforming Liquid Feeds into Uniform Dry Powder in a Single Step

The Centrifugal Spray Dryer is a continuous, concurrent drying system designed to convert pumpable slurries, solutions, or emulsions into fine, free-flowing powder instantaneously. By atomizing the liquid feed into a hot air chamber via a high-speed rotary atomizer, it achieves rapid moisture evaporation and particle formation in one integrated operation, making it essential for heat-sensitive materials and precise powder production.

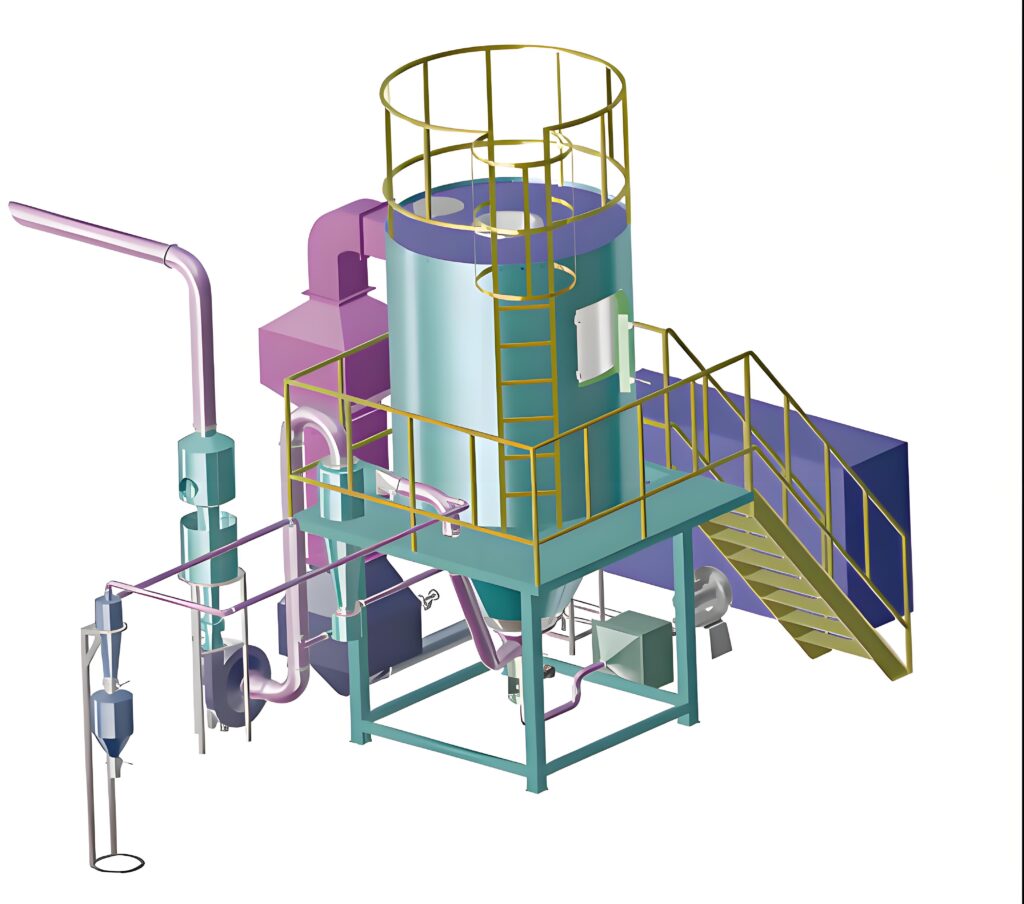

Centrifugal Spray Dryer

Key Features

  • High-Speed Centrifugal Atomization

    Utilizes a rotary atomizer (disk or wheel) spinning at high RPM to disintegrate liquid into a fine mist of uniform droplets, ensuring consistent particle size distribution.

  • Concurrent Drying Chamber

    Hot air and atomized droplets travel in the same direction, allowing rapid evaporation at the droplet surface while keeping the particle core temperature relatively low—ideal for heat-sensitive products.

  • Integrated Powder Recovery

    A primary cyclone separator efficiently collects the majority of the dried powder from the exhaust air stream.

  • Complete Process in One Unit

    Integrates atomization, drying, and primary separation within a single, compact system footprint.

  • Precise Control System

    Allows independent adjustment of inlet air temperature, feed rate, and atomizer speed to control final powder moisture, density, and particle size.

Advantages

  • Single-Step Drying

    Converts liquid to dry powder directly, eliminating intermediate processing steps like concentration or crystallization.

  • Superior Product Quality

    Produces spherical, hollow, or porous powders with excellent solubility, dispersibility, and consistent particle morphology.

  • Gentle Drying for Sensitive Materials

    Short residence time (seconds) and evaporative cooling effect protect heat-sensitive components like certain additives or biological agents.

  • High Automation Potential

    Easily integrated into continuous, automated production lines with real-time monitoring and control.

  • Scalable from Pilot to Production

    Process parameters are easily scalable from laboratory units to large industrial dryers.

Applicable Raw Materials

  • Fertilizer Concentrates & Additives

    Such as humic acid slurries, amino acid solutions, or trace element chelate suspensions.

  • Chemical & Industrial Slurries

    Ceramic precursors, catalyst supports, detergents, and inorganic salts in solution.

  • Food & Pharmaceutical Extracts

    Heat-sensitive biomaterials where rapid drying is critical to preserve activity.

  • Wastewater & Byproduct Concentrates

    For volume reduction and production of a stable solid product.

  • Dye & Pigment Suspensions

Basic Structure & Components

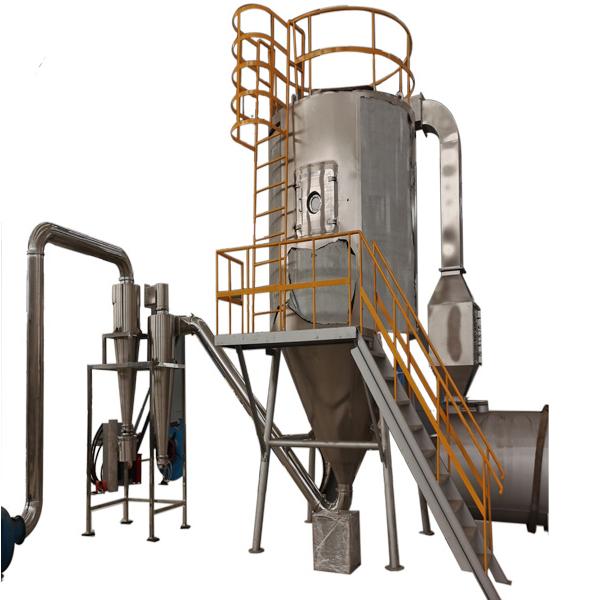

Centrifugal Spray Dryer
Feed System

Includes feed tank, pump, and filter for consistent delivery of liquid to the atomizer.

Centrifugal Atomizer

The core device comprising a high-speed spindle, turbine wheel or disk, and its direct-drive or belt-drive motor.

Drying Chamber (Tower)

A large cylindrical-conical vessel where atomization and primary drying occur, constructed from stainless steel or coated carbon steel.

Air Heating & Distribution System

Air heater (electric, gas, steam) and a hot air distributor that creates a laminar flow pattern into the chamber.

Primary Cyclone Separator

Separates the majority of dried powder from the exhaust air.

Exhaust Fan

Draws air through the entire system and maintains slight negative pressure to prevent powder leakage.

Powder Discharge Systems

Rotary valves or screw conveyors at the base of the chamber and cyclone for continuous powder removal.

Bag Filter or Wet Scrubber (Secondary)

Polishes the exhaust air to capture any remaining fines for environmental compliance.

Integrated Control Panel (PLC)

For automated control and monitoring of all critical parameters.

Technical Data

Parameter

Model CSD-1500

Model CSD-3000

Model CSD-5000

Evaporation Capacity (kg H₂O/h)

50 – 150

200 – 400

400 – 800

Chamber Diameter (m)

~1.5

~3.0

~5.0

Inlet Air Temperature (°C)

150 – 300

150 – 300

150 – 300

Outlet Air Temperature (°C)

80 – 100

80 – 100

80 – 100

Atomizer Speed (rpm)

15,000 – 25,000

10,000 – 18,000

8,000 – 15,000

Final Powder Moisture (%)

< 5% (adjustable)

< 5% (adjustable)

< 5% (adjustable)

Main Heater Power / Capacity

Electric: ~100 kW

Gas: ~400,000 kcal/h

Gas: ~800,000 kcal/h

Note: Evaporation capacity is the key metric. All specifications are subject to customization based on feed properties and product requirements.

Key Differentiators vs. Other Dryers

Handles liquid/slurry feeds, not solids. It is a feed-forward process unit (liquid in, powder out), whereas rotary dryers are downstream processing units (wet granules in, dry granules out). The fundamental technology (atomization vs. tumbling) and application stage are entirely different.

The centrifugal atomizer typically handles a wider range of feed viscosities and solids contents more robustly than pressure nozzles, and is less prone to clogging with abrasive particles, making it often preferred for industrial and chemical applications.

Produces a free-flowing powder, not flakes or sheets. It offers much better control over final particle size and morphology, resulting in a product with superior handling and solubility properties.

It is the premier choice for directly drying liquid formulations into high-value, engineered powders where control over particle characteristics and preservation of heat-sensitive properties are critical requirements.
