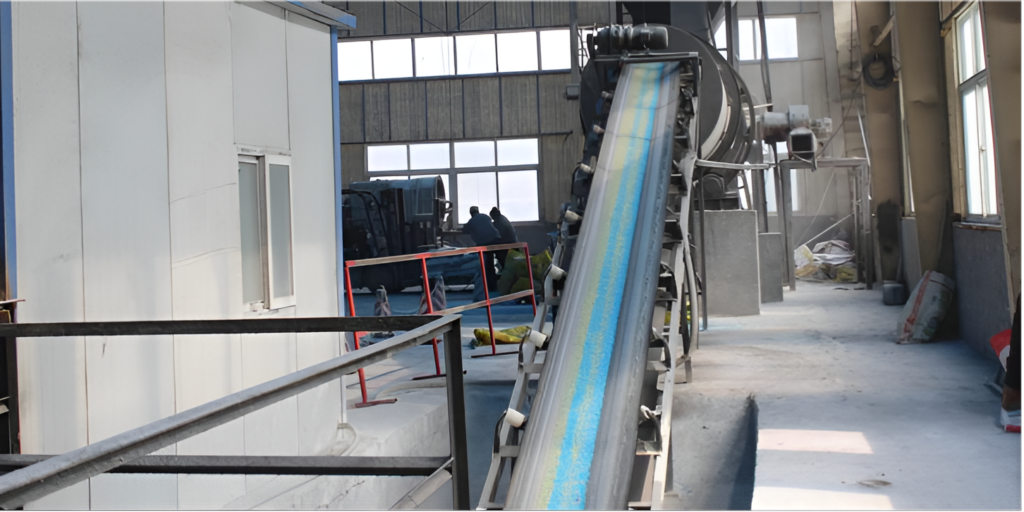

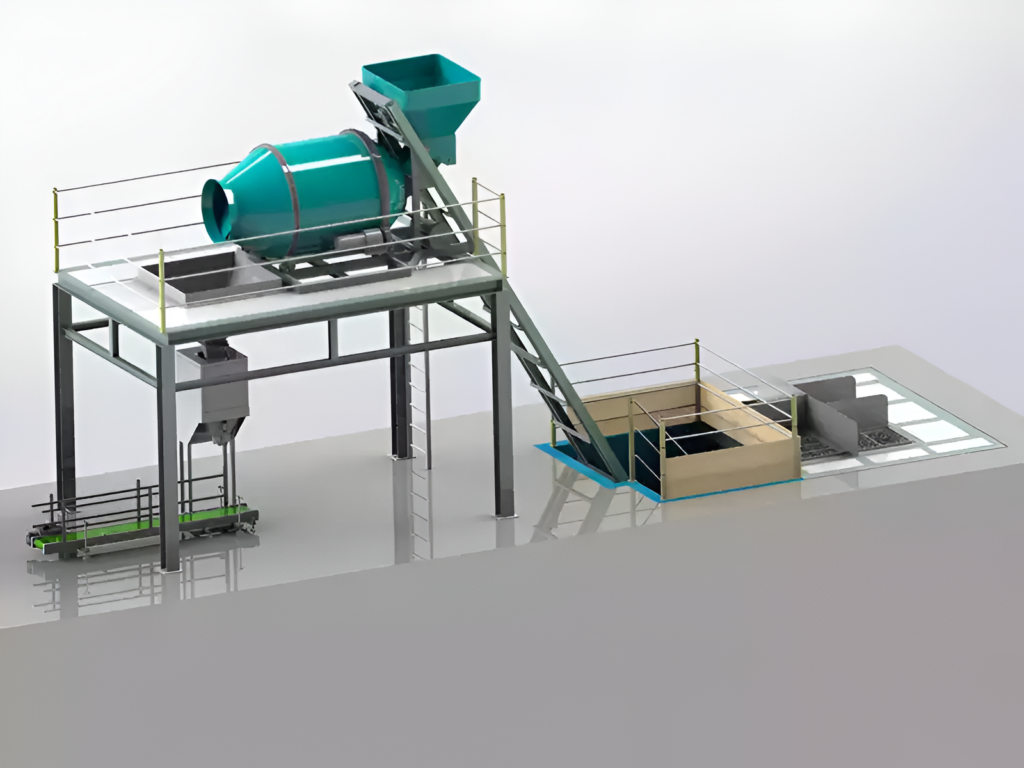

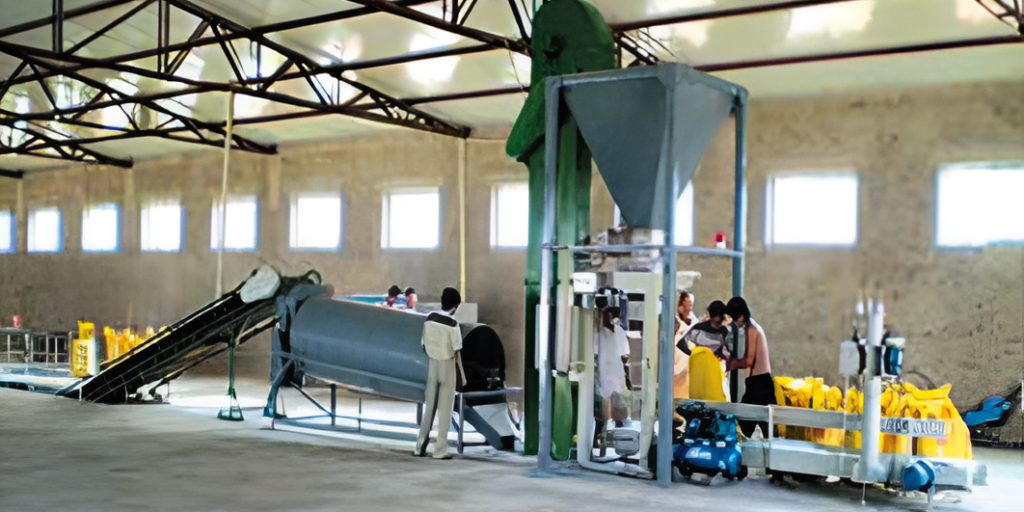

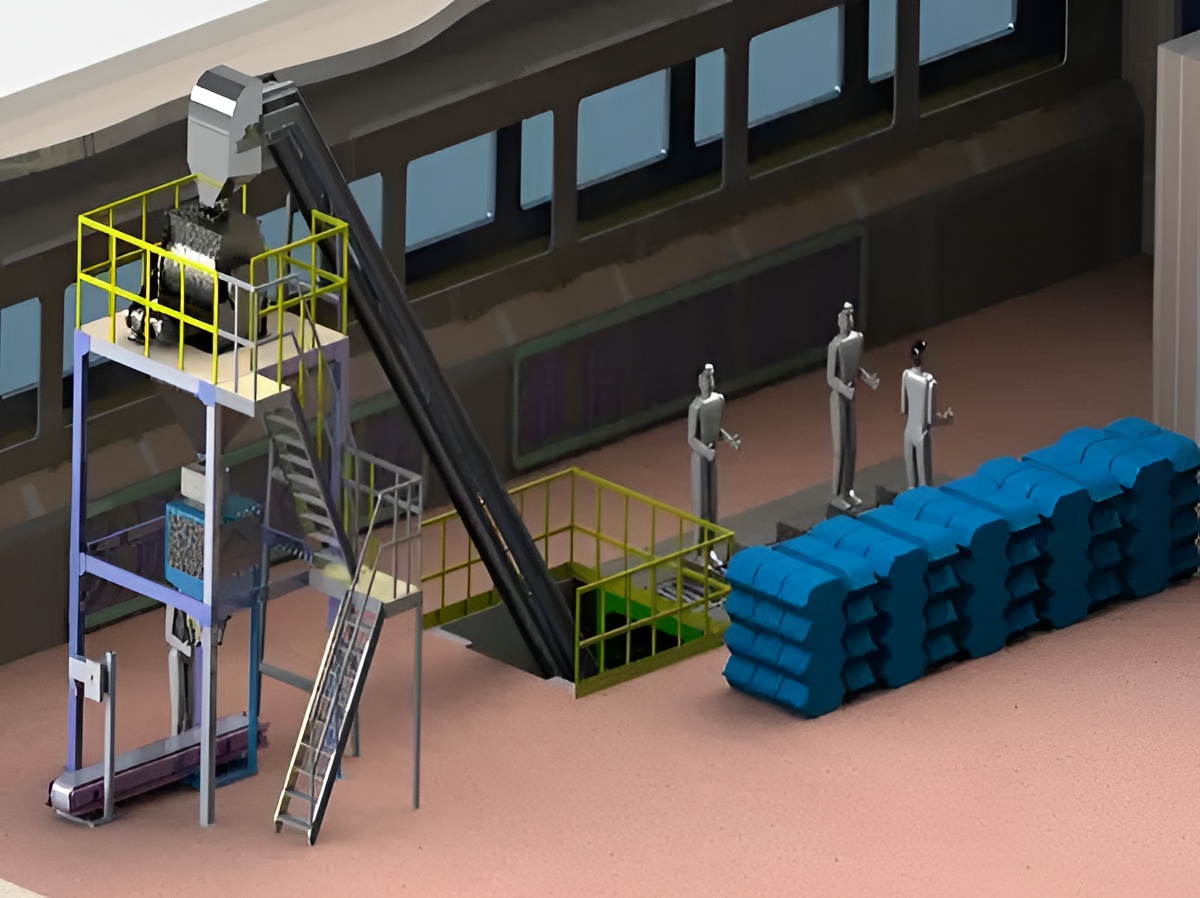

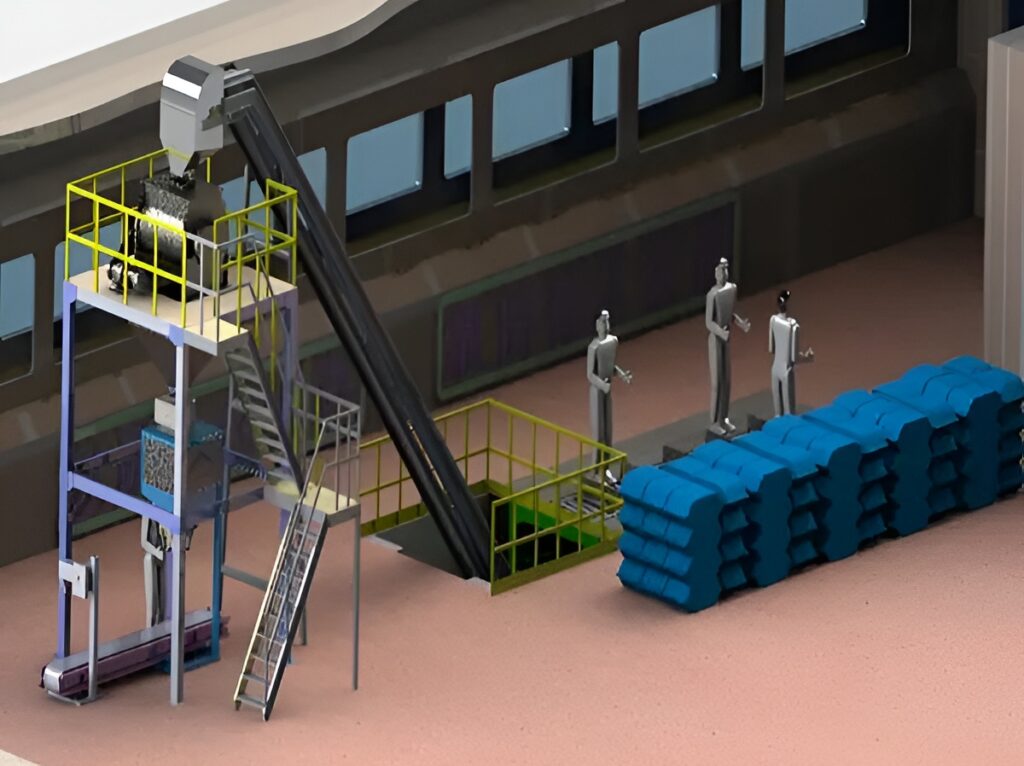

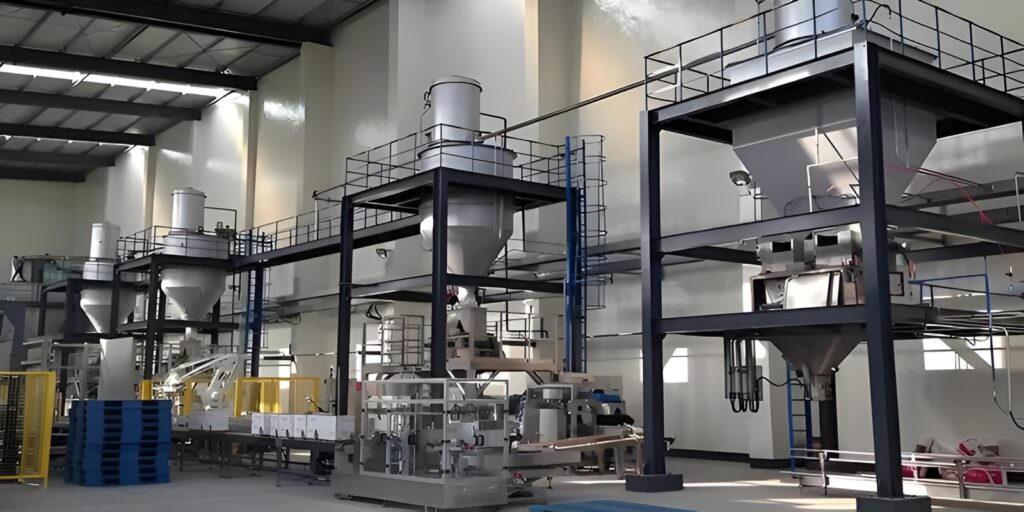

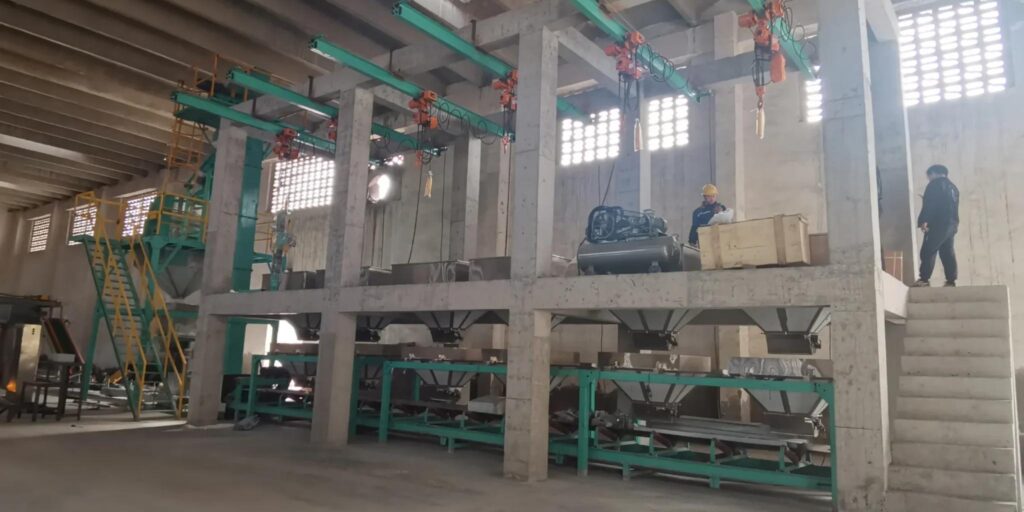

Bulk Blending (BB) Fertilizer Production Line
A cost-effective and flexible solution for producing precise, homogeneous bulk blend fertilizers. Our line is engineered for accuracy, speed, and gentle handling to maintain the integrity of each raw material granule, ensuring perfect nutrient uniformity in every batch.
BB Fertilizer Production Line Equipment List
Raw Material Receiving Hoppers

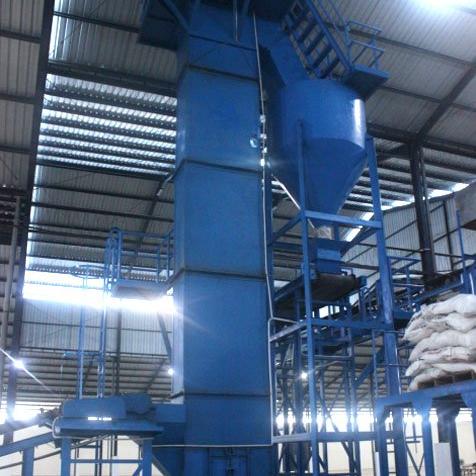

Bucket Elevators / Belt Conveyors

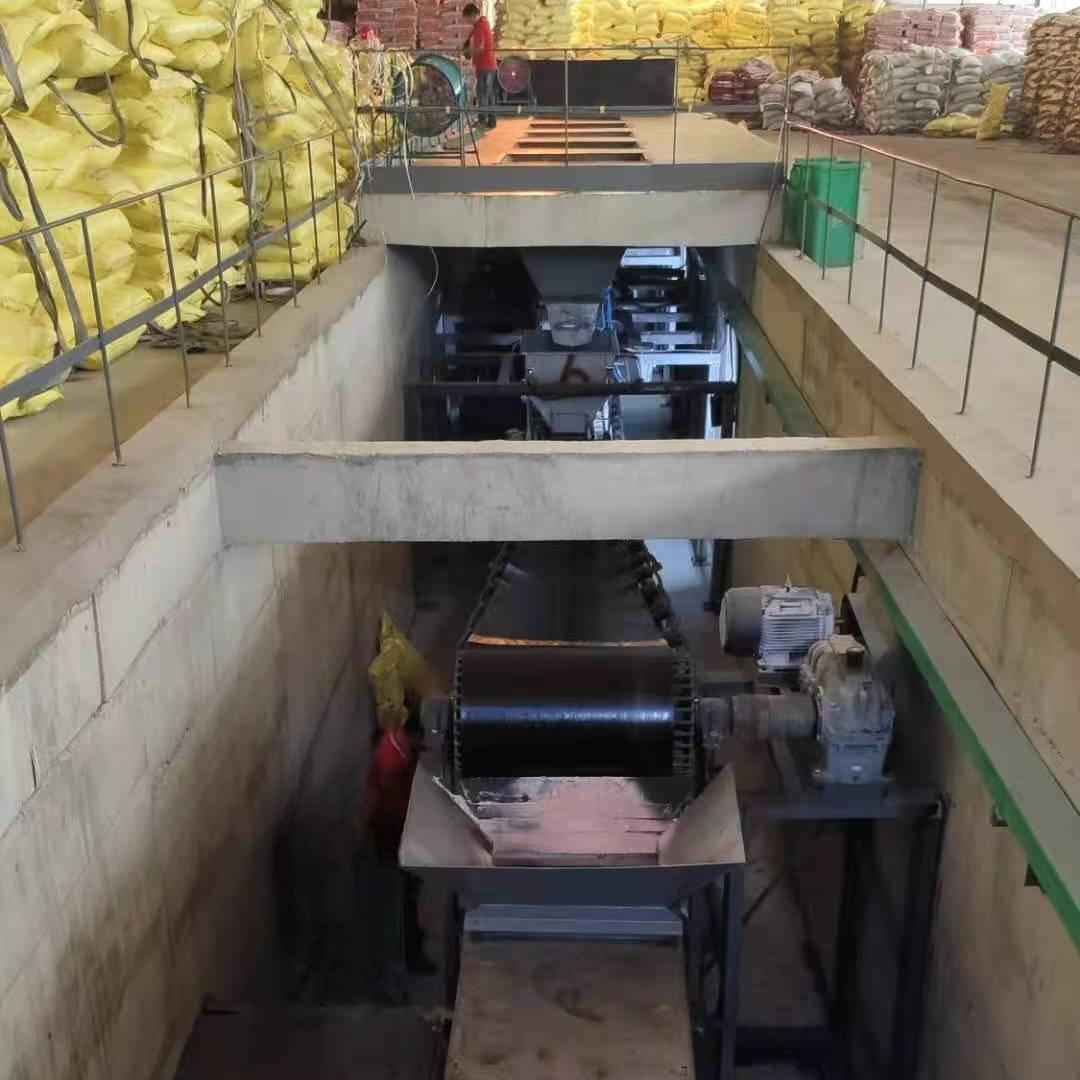

Pre-Batching Silos

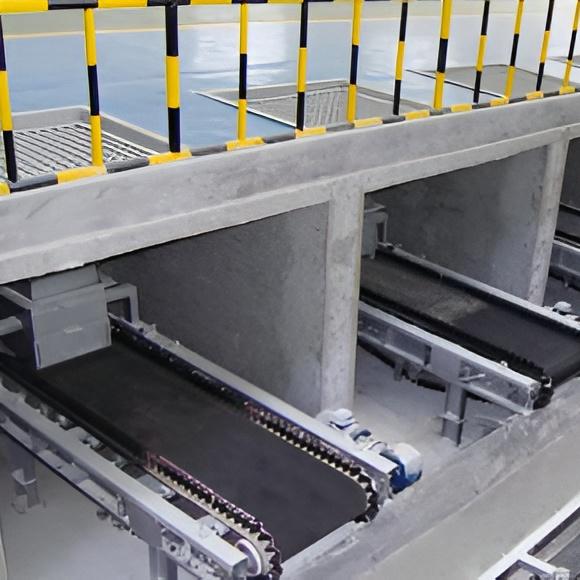

Precision Weighing Hoppers & Scales

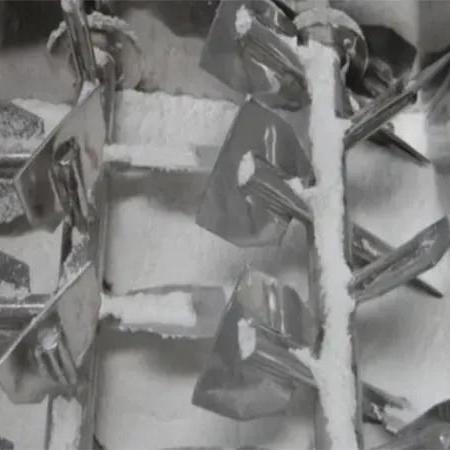

Gentle Mixing Unit

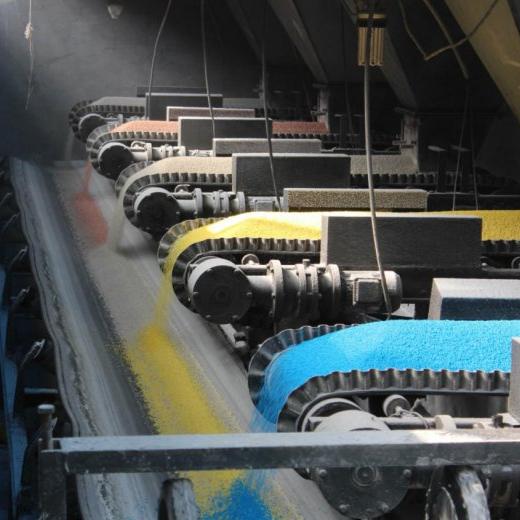

Discharge & Transition Conveyor
Automated Packaging Scale
Dust Control System
Central Control System
BB Fertilizer Production Line Techinical Parameters
Parameter | Value / Description |
Capacity | 5–60 tons per hour (highly scalable) |
Batch Mixing Time | 3–6 minutes per batch |
Mixing Uniformity (CV) | ≤ 5% (Excellent homogeneity) |
Weighing Accuracy | ±0.1% ~ ±0.5% of full scale |
Power Consumption | Very Low (15–100 kW, mainly for conveying & mixing) |
Automation Level | Basic Automatic (Weighing & Mixing) / Fully Automatic with Recipe Management |
Plant Footprint | Compact, 200 – 1000 m² (Can be linear or vertical design) |
Key Material | Carbon Steel (Powder-coated) / Stainless Steel contact parts optional |
Raw Materials For BB Fertilizer Production Line
Key Requirement: All raw materials must have similar and matched particle size (typically 2-4 mm) to prevent nutrient segregation during handling and application.
BB Fertilizer Production Line Production Process
Granular base fertilizers are delivered and temporarily stored in designated receiving hoppers or bulk bags. This step ensures material availability and minimizes cross-contamination.
Materials are independently conveyed (via elevator or conveyor) from their storage to dedicated weighing hoppers mounted on high-precision electronic scales.
The control system sequentially doses each ingredient according to the selected digital recipe, achieving extremely accurate batch proportions.
Once all ingredients in a batch are weighed, they are simultaneously or sequentially discharged into the inlet of the gentle mixing unit. This ensures the entire batch enters the mixer together for consistent results.
Inside the mixer (ribbon or rotary type), the granules are blended for a predetermined time (3-6 mins). The mixer's action is designed to create a perfectly homogeneous blend without crushing or damaging the granules, which is critical for quality.
The uniformly mixed batch is fully discharged from the mixer onto a short conveyor. The system is designed for complete discharge to prevent cross-batch contamination.
The finished BB fertilizer is directly packed into the desired format:
Bulk Bags (Big Bags): Using a semi or fully automatic bulk bag filler.
Small Bags: Fed into a multi-spout weighing and sewing bagging line.
Localized dust extraction points at all transfer zones (mixer inlet/outlet, packaging) capture airborne particles, maintaining a clean plant environment and minimizing product loss.
BB Fertilizer Production Line
Advantages
Unbeatable Formulation Agility & Speed
Change fertilizer formulas in minutes simply by selecting a new recipe on the control panel. Perfect for serving farmers with customized NPK+S+Micro nutrient blends, producing small batches on demand with zero cross-contamination.
Low Capital & Operational Investment (Fast ROI)
Requires significantly less equipment, space, and energy (no drying/cooling/granulation needed) compared to a chemical fertilizer line. This makes it the most cost-effective entry point into fertilizer production, with a rapid return on investment.
Preserves Granule Integrity & Nutrient Accuracy
Our gentle mixing technology ensures base granules are not broken down. This, combined with precision weighing, guarantees that the nutrient ratio specified in the formula is exactly what reaches the farmer’s field, preventing segregation.
Simple Operation & Low Maintenance
The process is straightforward—weighing and physical mixing. This translates to easy training for operators and minimal maintenance, with no high-temperature or high-wear processes like granulation or drying.
Clean, Modular & Expandable Design
The line is inherently low-dust with integrated collection. Its modular nature allows you to start simple and later add more raw material silos, a micro-ingredient dosing system, or automated packaging as your business grows.
